No longer available.

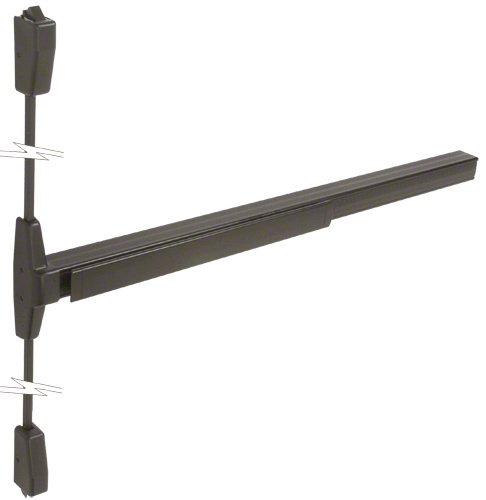

Von Duprin® Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 48” x 84” Exit Only

 Discontinued item. All sales are final.
No longer available.
Finish/Color : Dark Bronze
Dark Bronze
Item #: 3327AE04313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Von Duprin® Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 48” x 84” Exit Only
×
Von Duprin® Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 48” x 84” Exit Only
Quantity Standard Price Sale Price Your Price
Von Duprin® Surface Mounted Vertical Rod Panic Exit Device with Grooved Case Dark Bronze Finish 48” x 84” Exit Only Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Brand
    Von Duprin
  • Case Quantity
    2
  • Certification
    ANSI/BHMA 156.3 Grade 1
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material
    Aluminum
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    3327AEO
  • Panic Bar Base Height
    2-1/4 in. (57.2 mm)
  • Panic Bar Projection
    3-13/16 in. (96.8 mm)
  • Panic Bar Width Net
    47-3/8 in. (1203.3 mm)
  • Panic Body Style
    Grooved
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Head Base Width
    2-11/16 in. (68.3 mm)
  • Panic Head Height
    8-3/16 in. (208 mm)
  • Panic Type
    Surface Vertical Rods
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum, Narrow, Medium, Wide Style, Wood, Hollow Metal
  • Series
    3327A
  • UL Listed
    Yes
Product Overview
  • Non-Handed
  • Fits Stiles as Narrow as 1-3/4" (44 mm)
  • Features Grooved Case Surface
  • UL Listed and Tested to ANSI A156.3, Grade 1

The IR Von Duprin® 3327A Series Surface Mounted Vertical Rod Panic Exit Device is designed for use with single and double doors. It has a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One"® technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.

REPLACEMENT PARTS:
  • DL2170SCKDDU
  • DL2170Y8KDDU
  • Special Order

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
