• Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, As Well As Wood and Hollow Metal Doors
• Complies with ANSI 156.3, Grade 1 Specifications
• Concealed Fastening for Added Security
• Can Be Cut to Size

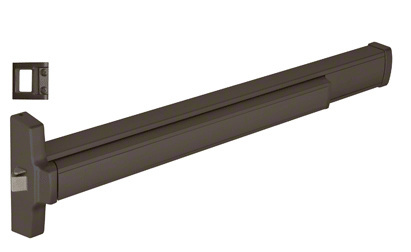

CRL Jackson® Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDDU, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521. For double door applications use Jackson® Mullion such as 3089620958313.


SPECIFICATIONS:
2095 Rim Device

Requires Rim Cylinder for Keyed Entry

Cylinder Mounting Pad Not Required

3/4" (19 mm) Throw Deadlocking Latch

MATERIALS:

Body and Push Pad: Extruded Aluminum

Mechanical Components: Stainless and Hardened
Plated Steel

Latch and Strikes: Sintered Steel

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
