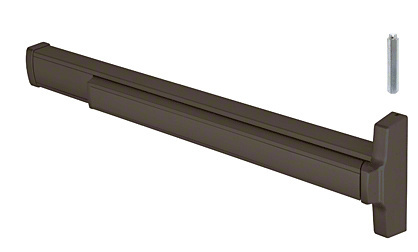

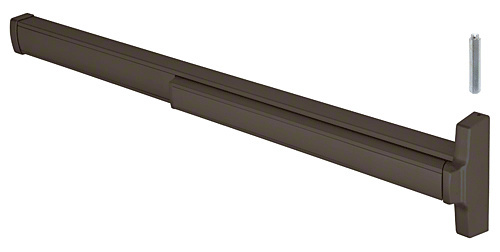

CRL Jackson® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish

Finish/Color : Dark Bronze
Dark Bronze
Item #: 3120861R47313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 13.15 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Jackson® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish
×
CRL Jackson® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish
Quantity Standard Price Sale Price Your Price
CRL Jackson® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Dark Bronze Finish Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 126
Dallas, Texas 10/18/2024
Chicago (Elgin), Illinois 10/18/2024
San Francisco/Oakland (Union City), California 10/17/2024
Atlanta, Georgia 10/21/2024
New York Area (Secaucus, New Jersey) 10/21/2024
Boston (Taunton), Massachusetts 10/21/2024
Orlando, Florida 10/22/2024
Denver, Colorado 10/22/2024
Seattle (Kent), Washington 10/22/2024
Cleveland (Solon), Ohio 10/21/2024
Philadelphia Area (Moorestown, New Jersey) 10/18/2024
Phoenix, Arizona 10/17/2024
Las Vegas, Nevada 10/18/2024
Houston, Texas 10/18/2024
Miami, Florida 10/23/2024
San Diego, California 10/16/2024
Carolinas and Virginia, South Carolina 10/22/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Impact Panic Hurricane Resistant
    Yes
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    2086
  • Panic Bar Base Height
    2-7/8 in. (73 mm)
  • Panic Bar Projection
    3 in. (76.2 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Push Button
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Concealed Vertical Rods Top Bolt
  • Push Pad Width
    23-1/2 in. (596.9 mm)
  • Recommended Door Type
    Aluminum Narrow, Medium, Wide Stile, Hollow Metal
  • Series
    20
  • Tall Door Extention Rods
    301347
  • UL Listed
    Yes
Product Overview
  • Includes Impact Kit
  • Remarkably Quiet, Smooth, Reliable Operation
  • Use with Narrow, Medium and Wide Stile Aluminum Doors
  • Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
  • Easy Concealed Push-Button Dogging Standard. Cylinder Dogging, and Front Hex Key Dogging Available

CRL Jackson® Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact systems. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales Department). For doors over 84" order Top Rod Extender: 12" - 301347 or 24" - 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKADU, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDDU with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J313. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim such as 8500LV02313.

REPLACEMENT PARTS:
  • 301266313
  • 301265313
  • 302462
  • 301084313
  • 30763P
  • 301552
  • 30824313
  • 308621J313
  • DL2170SCKDDU
  • 302989313
