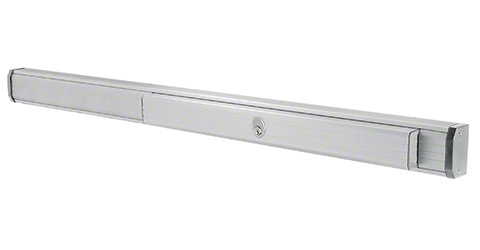

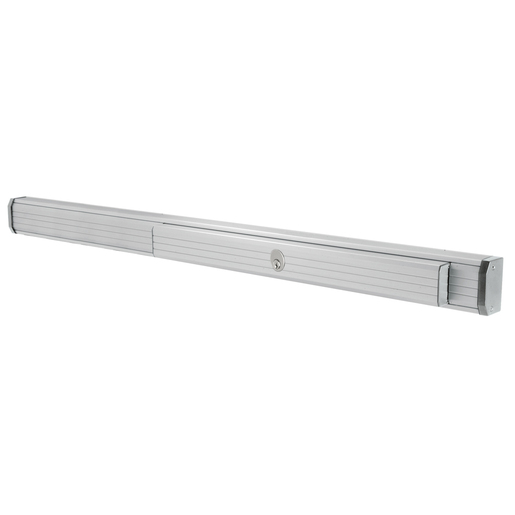

CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging

Finish/Color : Aluminum
Aluminum
Item #: 311285CR4628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 10.175 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
×
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging
Quantity Standard Price Sale Price Your Price
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device with Cylinder Dogging Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 59
Dallas, Texas 4/23/2024
Chicago (Elgin), Illinois 4/23/2024
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 4/23/2024
New York Area (Secaucus, New Jersey) 1
Boston (Taunton), Massachusetts 4/29/2024
Orlando, Florida 1
Denver, Colorado 4/23/2024
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 4/23/2024
Philadelphia Area (Moorestown, New Jersey) 4/26/2024
Phoenix, Arizona 4/25/2024
Las Vegas, Nevada 1
Houston, Texas 4/23/2024
Miami, Florida 1
San Diego, California 4/22/2024
Carolinas and Virginia, South Carolina 4/30/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1285
  • Panic Bar Base Height
    3-3/16 in. (81 mm)
  • Panic Bar Projection
    2-7/8 in. (73 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Prepped For Cylinder Dogging
  • Panic Type
    Concealed Vertical Rods
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum Narrow, Medium, Wide Stile, Hollow Metal
  • Series
    1200

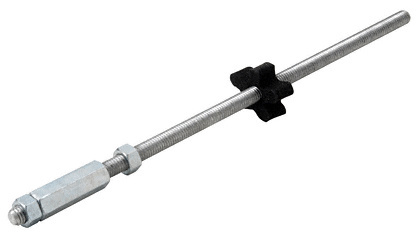

  • Tall Door Extention Rods
    301347 & 301348
  • UL Listed
    Yes
Product Overview
  • Suitable for Use with Narrow, Medium and Wide Stile Doors
  • Sleek, Contemporary Style
  • UL Listed for Panic Exit Hardware

This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.

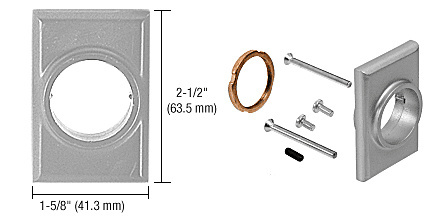

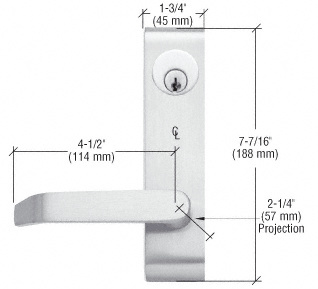

REPLACEMENT PARTS:
  • DC7205SCKADU
  • DC7205SCKDDU
  • 1CHDU
  • 1C01
  • 302630313
  • 302861
  • 30821J313
