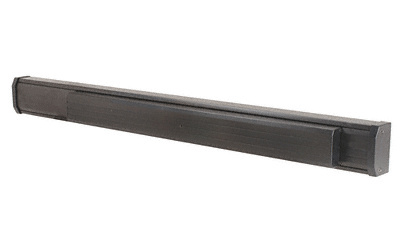

CRL Dark Bronze 36" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device

Finish/Color : Dark Bronze
Dark Bronze
Item #: 311285R37313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 6.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Dark Bronze 36" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
×
CRL Dark Bronze 36" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Dark Bronze 36" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 55
Dallas, Texas 6
Chicago (Elgin), Illinois 6
San Francisco/Oakland (Union City), California 10/10/2024
Atlanta, Georgia 3
New York Area (Secaucus, New Jersey) 4
Boston (Taunton), Massachusetts 10/14/2024
Orlando, Florida 10/15/2024
Denver, Colorado 1
Seattle (Kent), Washington 3
Cleveland (Solon), Ohio 10/15/2024
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 1
Las Vegas, Nevada 2
Houston, Texas 6
Miami, Florida 5
San Diego, California 1
Carolinas and Virginia, South Carolina 2
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    36 in. (914.4 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1285
  • Panic Bar Base Height
    3-3/16 in. (81 mm)
  • Panic Bar Projection
    2-7/8 in. (73 mm)
  • Panic Bar Width Net
    34-1/2 in. (876.3 mm)
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Type
    Concealed Vertical Rods
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum Narrow, Medium, Wide Stile, Hollow Metal
  • Replacement Parts
    302861, 30821J313
  • Series
    1200
  • Tall Door Extention Rods
    301347 & 301348
  • UL Listed
    Yes
Product Overview
  • Designed for Use with 1-3/4" Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • Soft-Touch Smooth Action Push-Pad
  • Can Be Cut to Size
  • Standard Hex Key Dogging

This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.

The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

SPECIFICATIONS:

1285 Concealed Vertical Rod Device
  • Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
  • Standard Height 84" (2.13 m) - Extension Available
  • Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry

    MATERIALS:
    Base and Push-Pad: Extruded Aluminum
    Mechanical Components: Stainless and Hardened, Plated Steel
    Latch and Strikes: Sintered Steel
    Metal End Caps

    Product Warning:

    If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
