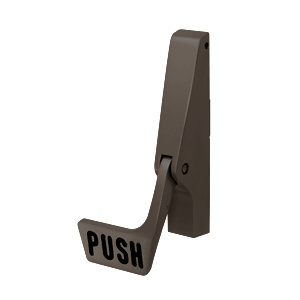

CRL Dark Bronze Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device

Finish/Color : Dark Bronze
Dark Bronze
Item #: 311085PR7313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.7 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Dark Bronze Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
×
CRL Dark Bronze Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
Quantity Standard Price Sale Price Your Price
CRL Dark Bronze Jackson® 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 92
Dallas, Texas 2
Chicago (Elgin), Illinois 5
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 4/8/2024
New York Area (Secaucus, New Jersey) 4/8/2024
Boston (Taunton), Massachusetts 4/8/2024
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 2
Las Vegas, Nevada 4/4/2024
Houston, Texas 4/5/2024
Miami, Florida 4/9/2024
San Diego, California 1
Carolinas and Virginia, South Carolina 4/9/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1085 Paddle
  • Paddle Push Width
    3-3/8 in. (85.7 mm)
  • Panic Bar Projection
    4-5/8 in. (117.5 mm)
  • Panic Dogging
    Screw Driver
  • Panic Head Base Width
    1-1/4 in. (31.8 mm)
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Concealed Vertical Rods (Paddle)
  • Recommended Door Type
    Narrow, Medium, Wide Stile, Aluminum, Hollow Metal
  • Replacement Parts
    30115, 301117313, 301117313, 301347, 301348, 30934313, 30320313, DL2170SCKDDU, DL2170SCKADU
  • Series
    10
  • UL Listed
    Yes
Product Overview
  • Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
  • Concealed Fastening for Added Security

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.

SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers

    1085 Concealed Vertical Rod Device
  • Standard Height 84" (2.13 m)
  • Requires Mortise Cylinder and No. 30821J
    Mounting Pad for Keyed Entry

    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
