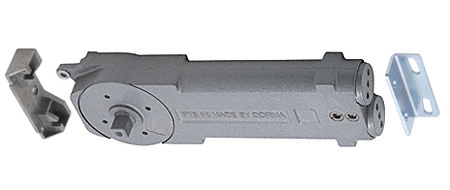

Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open - ADA Barrier-Free 5 Lb. Interior

Item #: RTS88105NH0BF1
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open - ADA Barrier-Free 5 Lb. Interior
×
Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open - ADA Barrier-Free 5 Lb. Interior
Quantity Standard Price Sale Price Your Price
Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open - ADA Barrier-Free 5 Lb. Interior Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 25
Dallas, Texas 11
Chicago (Elgin), Illinois 28
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 7/23/2024
New York Area (Secaucus, New Jersey) 5
Boston (Taunton), Massachusetts 1
Orlando, Florida 1
Denver, Colorado 7/23/2024
Seattle (Kent), Washington 2
Cleveland (Solon), Ohio 6
Philadelphia Area (Moorestown, New Jersey) 16
Phoenix, Arizona 1
Las Vegas, Nevada 7/25/2024
Houston, Texas 3
Miami, Florida 7/23/2024
San Diego, California 7/22/2024
Carolinas and Virginia, South Carolina 2
Product details
  • Body Height
    1-1/2
  • Body Length
    11-1/2
  • Body Width
    3-9/16
  • Brand
    Dormakaba®
  • Closer Type
    Overhead Concealed
  • Door Height
    96
  • Door Opening
    105
  • Handing
    Double Acting
  • Maximum Door Weight
    250
  • Maximum Door Width - Exterior
    36 Inches
  • Maximum Door Width - Interior
    36 Inches
  • No Hold Open
    Yes
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Spindle
    1/2
  • Spring Size
    5
  • UL Listed
    Yes
Product Overview
  • Standard Mounting Clips Included
  • Recommended for doors up to 36" (914 mm) Wide x 96" (2438 mm) High
  • Maximum Door Weight: 250 Lbs.
  • 5 Lbs. ADA Barrier-Free for Interior Doors

The Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open is designed for ADA Barrier-Free 5 lbs. interior doors. Also has dual action and non-critical valves for control adjustments of both closing and latching speed independent of each other. Each closer body comes packaged with mounting clips, templates, and instructions.

Product Warning:

Although Dorma® RTS BFI/BFE Series Closers comply with ADA specified opening forces, they may not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
