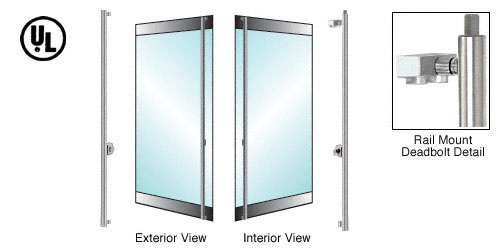

CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: 3D130F4R1BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass
×
CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass
Quantity Standard Price Sale Price Your Price
CRL-Blumcraft® Brushed Stainless Left Hand Reverse Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Application
    DRS Rail Mount
  • Diameter
    1-1/4 in. (32 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/4 in. (19 mm)
  • Handing
    Left Hand Reverse
  • Keying
    Cylinder / Thumb Turn
  • Latching
    Top
  • Material
    Stainless Steel (Alloy 304)
  • Maximum Door Height
    102 in. (2591 mm)
  • Maximum Door Width
    48 in. (1219 mm)
  • Top Latch Type
    Deadbolt
Product Overview
  • For 3/4" (19 mm) Tempered Glass Doors

This CRL-Blumcraft® Glass Door Deadbolt Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. Keyed Lock standard on interior and exterior side of handle. Optional thumbturn to replace keyed lock. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.

SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
    Glass Thickness:
  • 3/4" (19 mm)
    Glass Fabrication: Varies
  • Please contact CRL Technical Sales

    ORDERING OPTIONS
    When ordering Deadbolt Handles you must specify:
  • Exterior Handle Option (
  • Right or Left Hand (as Viewed from the Outside)
  • Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
  • Single or Double Door Strike (for Single Acting Doors)
  • Brushed or Polished Stainless, Satin or Polished Brass Finish

    For more information contact CRL Commercial Products Technical Sales Department.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
