CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: 3P100K3RKBS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle
×
CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle
Quantity Standard Price Sale Price Your Price
CRL-Blumcraft® Brushed Stainless Right Hand Reverse Rail Mount Keyed Access K-Exterior, Top Securing Panic Handle Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Application
    DRS Rail Mount
  • Diameter
    1-1/4 in. (32 mm)
  • Exterior Access
    Yes
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/4 in. (19 mm)
  • Handing
    Right Hand Reverse
  • Keying
    Cylinder Outside Only
  • Latching
    Top
  • Material
    Stainless Steel (Alloy 304)
Product Overview
  • For 3/4" (19 mm) Tempered Glass Doors and Can Be Used as a Replacement for Older Panics
  • Custom Sizes Ship within One to Two Weeks
  • Optional Keyed Access and Electric Strike
  • Certification: ANSI/BHMA A156.3 - 2001 Grade 1

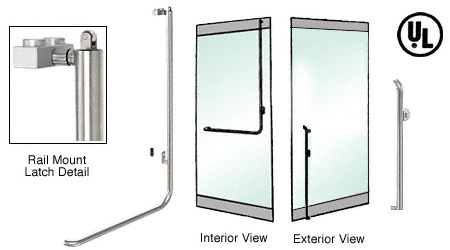

This CRL-Blumcraft® Glass Door Panic Handle is designed to allow maximum view and a contemporary look to 1/2" or 3/4" (12 or 19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. "Dogging", locking the device in the open position, is easy with just a slide of a knob. A Door Stop/Strike must be ordered separately. Threshold Strike Plate available for PA110 Series. Custom Header available with your choice of pre-installed hardware.

SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm thick)
    Glass Thickness:
  • 1/2" or 3/4" (12 or 19 mm)
    Glass Fabrication: Varies
  • Please contact CRL Technical Sales

    ORDERING OPTIONS
    When ordering Panic Handles you must specify:
  • PA100 or PA110 Series
  • Exterior Handle Option
  • Right or Left Hand (as viewed from the outside)
  • Rail Mount (for doors with full length rails) or Glass Mount (for doors with patch rails)
  • Standard Retainer Plate or Optional Keyed Access Device
  • Brushed or Polished Stainless, Satin or Polished Brass Finish
  • Optional Threshold Strike Plate (PA110 Series Only)

    Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
  • Technical References & CAD Drawings
